High Quality Filter Bag Support Baskets for Bag Filter Housings

Filter bag support basket is a key element of bag filters. In the filtration process, filter bag meets industrial filtration precision requirements, however, it has a low impact strength and is easily damaged. Filter bag support basket is provided to support and protect the filter bag. It not only greatly reduces the use cycle of replacing the filter bag, but also plays the role of coarse filter.

Material: perforated metal mesh
Standard design perforated opening diameter is 9/64", with a high opening ratio and suitable for filter bags of all standard sizes.
Available in a variety of standard sizes
Great corrosion and chemical resistance, easy to clean
Filter area: 0.05 m² to 0.5 m²
Filter rating: 5–5000 μm

Filter bag support baskets in various sizes

Working Principle

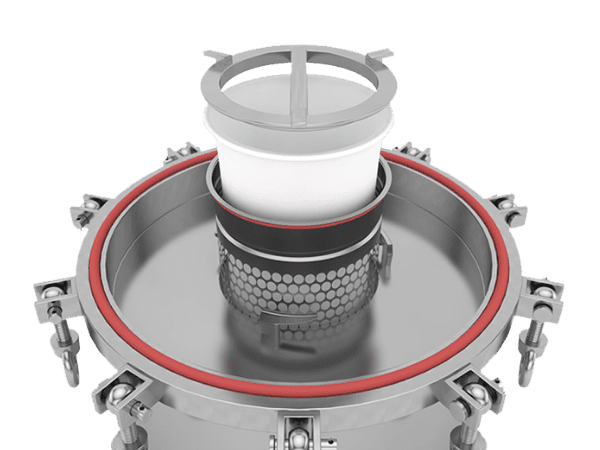

Place the filter bag into the support basket. Fluid flows into the filter from the inlet and flows out of the outlet after in-house filtration. Impurities are trapped in the filter bag. Filter bags need to be replaced after a period of use.

Specification

Specification of Filer Bag Support Baskets
Item No.	Support Basket for 1# Filter Bags	Support Basket for 2# Filter Bags	Support Basket for 3# Filter Bags	Support Basket for 4# Filter Bags
Material	304/316
Weight (kg)	1.3	2.5	0.3	0.6
Height (mm)	345	730	185	335
Diameter (mm)	178 mm		109 mm
Size	Hole diameter 3.5 mm, center spacing 4.7 mm
Surface treatment	Electrolytic polishing

Application

Bag filters are mainly used to remove trace fine impurities from liquids and are widely used in the following industries.

Fine chemicals. Paint and ink filtration;
Oil & gas. Produced water filtration; well injection water filtration;
Food & beverage. Beer and wine filtration; juice concentrate clarification; soft drink and bottled water production and filtration;
Automotive manufacturing. Automotive spray coating pretreatment, electrophoretic paint, finish & primer filtration; parts cleaning fluid filtration;
Pulp & paper. Coating filtration;
Machining. Machine tool coolant circulation filtration; cleaning fluid filtration; hydraulic and lubricating oil filtration.
